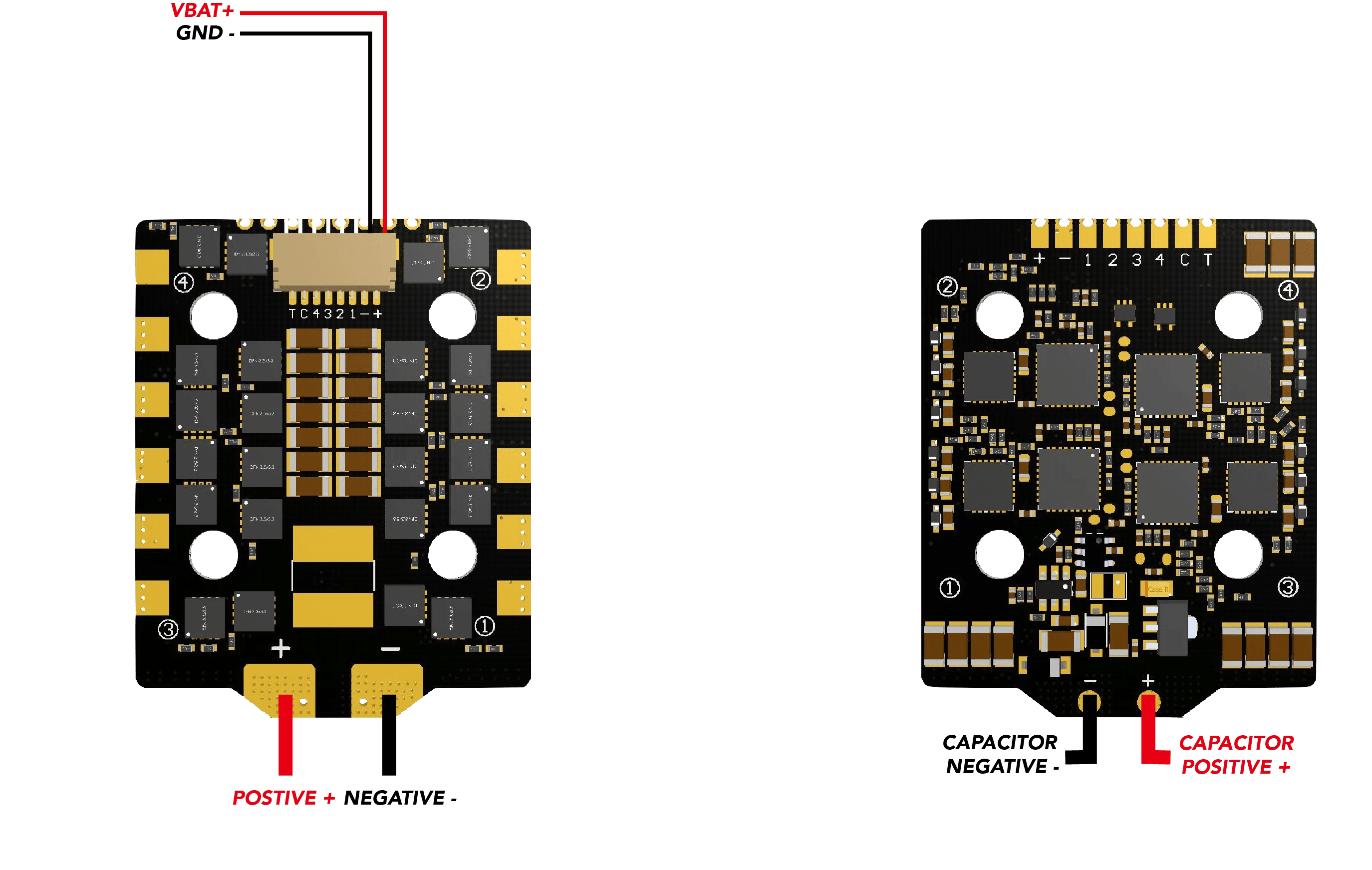

ZEEZ 45A ESC 4IN1 V2 ZE0004 TOP
ZEEZ 45A ESC 4IN1 V2 ZE0004 TOP
ZEEZ 45A ESC 4IN1 V2 ZE0004 BOTTOM
ZEEZ 45A ESC 4IN1 V2 ZE0004 ANGLE TOP
ZEEZ 45A ESC 4IN1 V2 ZE0004 ANGLE BOTTOM
ZEEZ 45A ESC 4IN1 V2 ZE0004 BOX

ZEEZ 45A 4in1 ESC V2

The ZEEZ 45A 4-in-1 ESC is an improved version of last year’s 2020 ESC. We took all the positive feedback from our users around the world along with the new advancements in technology and we truly raised the bar with this one.

The ZEEZ 45A 4-in-1 ESC comes with the fastest MCU available which is fully supported by BLHELI32, the STM32L4, it is 12% FASTER than the old STM32F3 and 67% FASTER than STM32F0. It supports Bi-directional DSHOT and all digital protocols (DSHOT150, DSHOT300, DSHOT600) out of the box. It supports 96KHz PWM drive frequency to the MOSFET whilst still supporting all analog protocols (PWM, OneShot125, OneShot42, Multishot).

We took advice from some of our newer pilots and have improved the solder pads by giving them more clearance.

$68.99

Discontinued

20 x 20
MOUNTING HOLES

3S-6S
BATTERY INPUT

45A-55A
CONTINUOUS & PEAK DRAW

STM32L4
80 MHz FREQUENCY
(12% FASTER THAN STM32F3 , 67% FASTER THAN STM32F0)

BLHELI32
O.G FIRMWARE

96KHz
MAX PWM FREQUENCY

MOSFET
HIGH QUALITY RDS(on) 1.3 mΩ
30V RATED



HIGH CAPACITANCE
ONBOARD & EXTERNAL CAPACITOR HOLES

CURRENT
SENSOR SCALE: 250
